CHANCS Permanent Magnet Synchronous Gear Motor 60KTYZ 110V 5-6RPM Large Torque Small Motor CW/CCWWith Fixed Bracket and Flange Coupling
Product details
| Management number | 213656878 | Release Date | 2026/04/12 | List Price | $14.80 | Model Number | 213656878 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

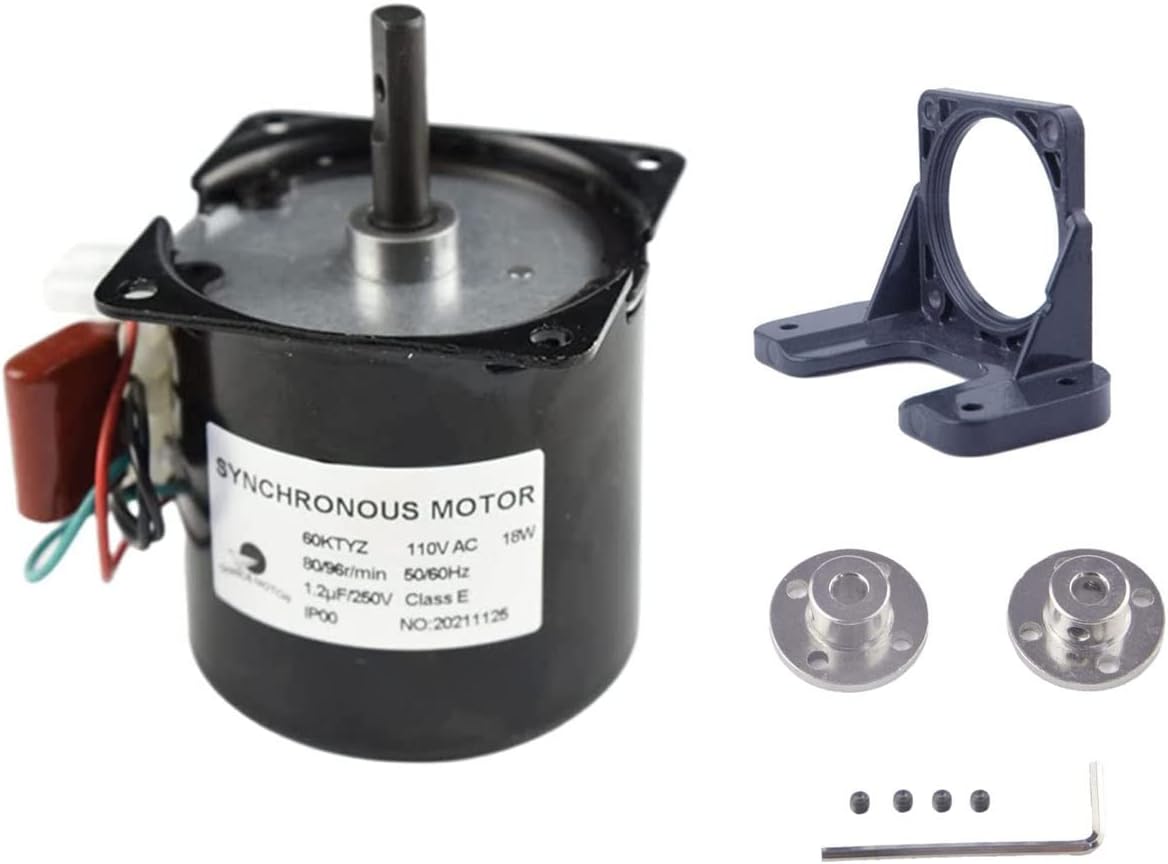

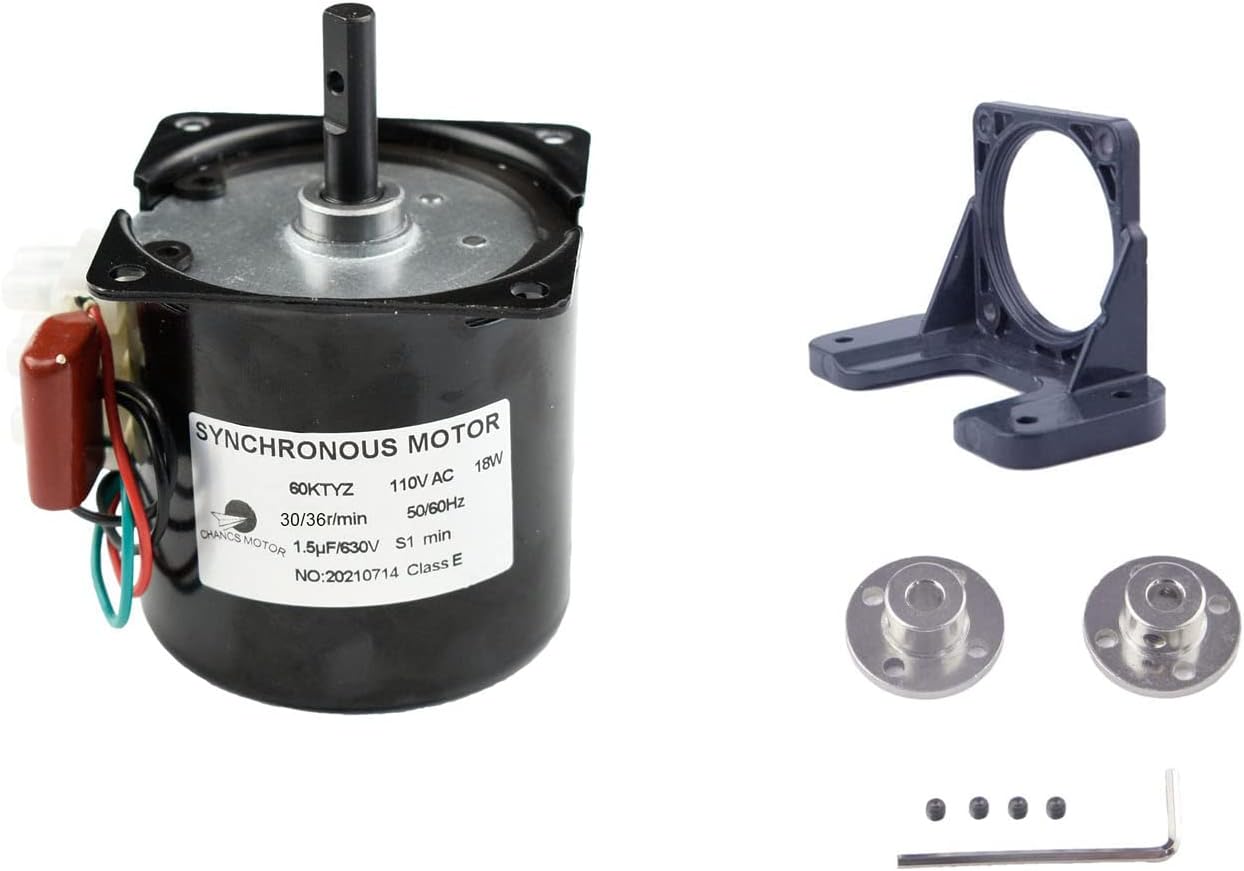

【Description:】This is a combination of 60KTYZ motor, bracket and flange coupling, this product is a claw-pole permanent magnet synchronous motor with built-in gear reduction mechanism that can control forward and reverse operation. The bracket can fixed motors in a firm way, convenient to use. 【Specification of Motor:】 Model Type: 60KTYZ; Voltage: AC 110V; Speed: 5/6r/min; Shaft Style: in center; Shaft Diameter: 7mm; Shaft Length: 25mm; CW/CCW (Controllable); Power: 18W; Torque: ≤40Kg.cm; Frequency: ~50/60Hz; 【Specification of Bracket:】 Type: U-Shape/Standard； Surface: Electroplating； Materials: High Strength Steel； Vertical Plane: thickness 6mm/0.24inch, height 69mm/2.72in； Baseboard: app.61mmx68mm/2.4in x 2.68in； Motor mounting hole: 5.5mm； 【Specification of Flange Coupling:】Cylinder Outer Diameter: 16mm; Inner Diameter: 7mm; Cylinder Height: 10mm; Base Diameter: 32mm; Thickness of the base:3mm; Fastening Screw Hole: M4; Base Fixing Screw Hole: M4. 【Application:】 This motor can be use for animated dolls, Christmas decorations, fiber optic Christmas tree, fiber optic display，Christmas Santa decoration，Christmas decoration, tumbler cup, rifle case creep, electric fireplace, fans, hand-made, school project, model and anything else you want. 【Package:】 1 x Motor；1 x Bracket；2 x Flange Coupling；4 x Nuts；8 x Screws；1 x M4 Mini Hex Wrench.
- This is a combination of 60KTYZ motor, bracket and flange coupling, this product is a claw-pole permanent magnet synchronous motor with built-in gear reduction mechanism that can control forward and reverse operation. The bracket can fixed motors in a firm way, convenient to use.
- 【Specification of Motor:】 Model Type: 60KTYZ; Voltage: AC 110V; Speed: 5-6rpm; Shaft Style: in center; Shaft Diameter: 7mm; Shaft Length: 25mm; CW/CCW (Controllable); Power: 18W; Torque: ≤40Kg.cm; Frequency: ~50/60Hz;
- 【Specification of Bracket:】 Type: U-Shape/Standard； Surface: Electroplating； Materials: High Strength Steel； Vertical Plane: thickness 6mm/0.24inch, height 69mm/2.72in； Baseboard: app.61mmx68mm/2.4in x 2.68in； Motor mounting hole: 5.5mm；
- 【Specification of Flange Coupling:】 Cylinder Outer Diameter: 16mm; Inner Diameter: 7mm; Cylinder Height: 10mm; Base Diameter: 32mm; Thickness of the base:3mm; Fastening Screw Hole: M4; Base Fixing Screw Hole: M4.
- 【Application:】 This motor can be use for animated dolls, Christmas decorations, fiber optic Christmas tree, fiber optic display，Christmas Santa decoration，Christmas decoration, tumbler cup, rifle case creep, electric fireplace, fans, hand-made, school project, model and anything else you want
| Model | 60KTYZ |
|---|---|
| Speed | 6 RPM |
| Voltage | 110 Volts (AC) |
| Brand Name | CHANCS |
| Horsepower | 18 Watts |
| Model Name | gear |
| Item Weight | 0.64 Kilograms |
| Manufacturer | CHANCS MOTOR |
| Material Type | Alloy Steel |
| Included Components | NO |
| Item Dimensions W x H | 2.4"W x 2.4"H |
