Emuca - Kitchen Cabinet Legs with Square Base, Black Plastic Furniture Feet, Set of 4 Adjustable Feet 100mm High
Product details
| Management number | 223411037 | Release Date | 2026/05/09 | List Price | $8.48 | Model Number | 223411037 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Kit consisting of 4 levellers feet, 4 square bases for fixing to the unit, 2 clamps for Plinth and mounting screws to lift-up kitchen units: The adjustable feet for Bone kitchen furniture are designed for low units with skirting. These feet raise the furniture in order to keep it away from moisture and to facilitate cleaning. They have height adjustment of -5 mm and +20 mm in order to correct possible unevenness of the ground. They stand out for their high load capacity, supporting a weight of 100kg. Tested according to standards: UNE-EN 16122:2012/AC:2015 and UNE-EN 14749:2016/A1:2022. The square, screw-mounted Bone base serves as a connecting link between the Bone leveller foot and the bottom base of a kitchen unit. The installation is simple: the base is directly attached to the foot and then Screw-on to the kitchen unit. If you want to install a Plinth, you need to combine these two items with the Bone square base clamp. This base has a large support surface and is equipped with side wings, ensuring good stability for both the unit and the Plinth. The Bone foot clamp with square base is used to connect the leveller foot to the Plinth. It is specially designed to be compatible with the Noline and Plasline Plinth range. These Plinth units have a groove in which the clamp is easily fitted, making assembly very simple. The clamp then attaches perfectly to the leveller foot thanks to its tight-fitting internal diameter and glide tabs. In addition, includes a double base unit for installing plastic or Wood Plinths (the Wood base allows direct screwing).
- Kit to lift modules off the floor and protect them from humidity. Consisting of 4 adjustable feet, 4 bases for fixing to the furniture, 2 clamps for Plinth and mounting screws.

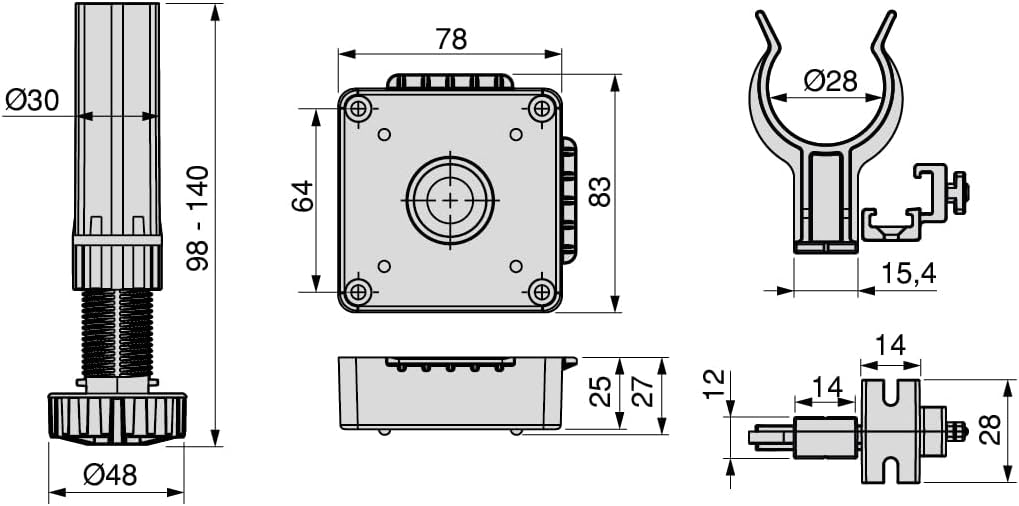

- Foot height adjustable between 98-140mm. The feet can support up to 100Kg.
- For assembly it is necessary to pre-machine four holes in the bottom board of the furniture.
- Specially designed to be compatible with Plasline and Noline Plinths. The clamps include a double base that allows the installation of plastic and Wood Plinths.
- Made of black plastic.
| ASIN | B0D9W3W8WW |
|---|---|
| Size | 1 Kit |
| Color | Black |
| Shape | Square |
| Set Name | Single Set |
| Leg Style | Square |
| Brand Name | Emuca |
| Item Depth | 10.5 centímetros |
| Style Name | H100 Plinth wood/plastic |
| Unit Count | 1.0 Ounce |
| Manufacturer | Emuca |
| Model Number | 2024417 |
| Material Type | Plastic |
| Item Type Name | Kitchen Cabinet Legs with Square Base |
| Item Dimensions | 4.13 x 5.31 x 7.28 inches |
| Furniture Finish | Black |
| Number of Pieces | 10 |
| Installation Type | Screw-In |
| Required Assembly | No |
| Included Components | 4 adjustable feet, 4 furniture mounting bases, mounting screws 2 clamps for plinths |
| Weight Capacity Maximum | 100 Kilograms |
| Manufacturer Part Number | 1 |
| Product Care Instructions | Mit trockenem oder feuchtem Tuch abwischen |
| Specific Uses For Product | kitchen furniture |
| Recommended Uses For Product | Kitchen Furniture,Cabinets,General Furniture Legs |
| Assembly Instructions Description | Included with the product |
